Desoldering Tip - Air-Vac, A.P.E., Pace Compatible

Request A Sample
Sku Number Name Size Units
Per Case
Price
Per Case
Case
Qty

20-0110 Desoldering Tip, 25.4mm L 1.0mm ID x 2.0mm OD 10 $29.40
20-0111 Desoldering Tip, 25.4mm L 1.5mm ID x 2.5mm OD 10 $28.90
20-0113 Desoldering Tip, 25.4mm L 1.3mm ID x 2.3mm OD 10 $28.90
20-0114 Desoldering Tip, 25.4mm L 0.8mm ID x 1.5mm OD 10 $28.90
20-0815 Desoldering Tip, 25.4mm L 0.9mm ID x 1.7mm OD 10 $43.90
Packaging Order minimum case quantity only. Extra shipping fees may apply.
Desoldering tips for Air-Vac, A.P.E. and Pace SX-20, SX-25 and SX-25V stations. See cross references or data sheets for tip-to-tip referencing.

Plato is one of the largest manufacturers of soldering tips in the world, producing tips to fit all of the most popular soldering stations. The long life and fast heat recovery of Plato soldering tips increases user effectiveness and decreases production times.

Features & Benefits

  • Fast heat recovery increases soldering speed
  • Longer tip life reduces soldering cost by decreasing tip change overs

Product Dimensions

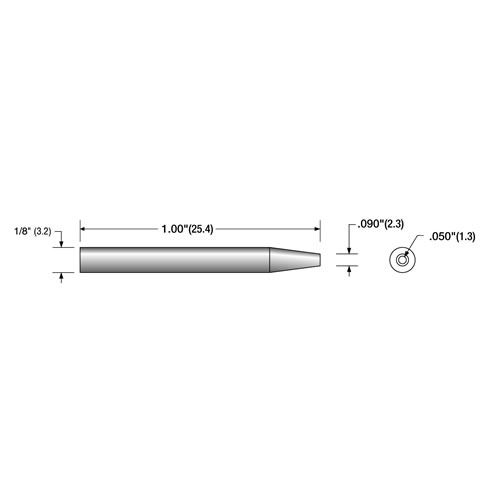

20-0110 Desoldering Tip, 25.4mm L

Cross Reference: A.P.E. 1212-0040, A.P.E. 1212-0084, A.P.E. 20-0110, Pace 1121-0479 10  Units/Case

Desoldering Tip, 25.4mm L

20-0111 Desoldering Tip, 25.4mm L

Cross Reference: A.P.E. 1212-0060, A.P.E. 1212-0082, A.P.E. 1212-0660, Air-Vac 60, Air-Vac 61, Pace 1121-0217 10  Units/Case

Desoldering Tip, 25.4mm L

20-0113 Desoldering Tip, 25.4mm L

Cross Reference: A.P.E. 1212-0050, A.P.E. 1212-0083, A.P.E. 1212-0550, Air-Vac 51, Pace 1121-0216 10  Units/Case

Desoldering Tip, 25.4mm L

20-0114 Desoldering Tip, 25.4mm L

Cross Reference: N/A 10  Units/Case

Desoldering Tip, 25.4mm L

20-0815 Desoldering Tip, 25.4mm L

Cross Reference: N/A 10  Units/Case

Desoldering Tip, 25.4mm L
