Desoldering Tips - Hakko Compatible

Request A Sample
Sku Number Name Size Units
Per Case
Price
Per Case
Case
Qty

HK-0878 Desoldering Tip - Hakko 0.8mm ID,1.8mm OD 10 $145.40
HK-0879 Desoldering Tip - Hakko 1.0mm ID,2.0mm OD 10 $145.40
HK-0880 Desoldering Tip - Hakko 0.8mm ID,2.3mm OD 10 $138.31
HK-0881 Desoldering Tip - Hakko 1.0mm ID,2.5mm OD 10 $145.40
HK-0882 Desoldering Tip - Hakko 1.3mm ID x 3.0mm OD 10 $145.40
HK-0883 Desoldering Tip - Hakko 1.5mm ID x 3.0mm OD 10 $145.40
Order from an Authorized Distributor
Packaging Order minimum case quantity only. Extra shipping fees may apply.
Replacement desoldering tips for Hakko 474, 475, 701, 702B stations, and 808 handpiece. See cross references or data sheets for tip-to-tip referencing.

Plato is one of the largest manufacturers of soldering tips in the world, producing tips to fit all of the most popular soldering stations. The long life and fast heat recovery of Plato soldering tips increases user effectiveness and decreases production times.

Features & Benefits

  • Fast heat recovery increases soldering speed
  • Longer tip life reduces soldering cost by decreasing tip change overs

Product Dimensions

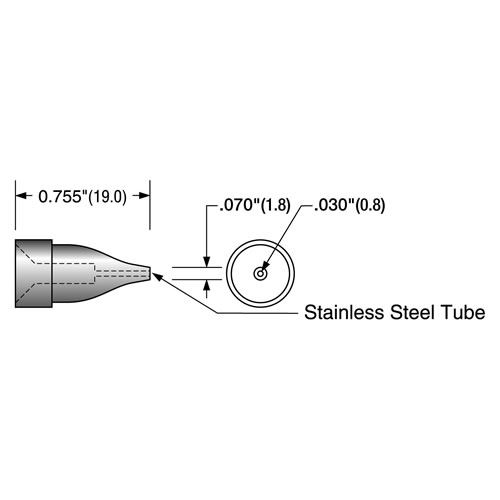

HK-0878 Desoldering Tip - Hakko

Cross Reference: Hakko A-1002 10  Units/Case

Desoldering Tip - Hakko

HK-0879 Desoldering Tip - Hakko

Cross Reference: Hakko A-1003 10  Units/Case

Desoldering Tip - Hakko

HK-0880 Desoldering Tip - Hakko

Cross Reference: N/A 10  Units/Case

Desoldering Tip - Hakko

HK-0881 Desoldering Tip - Hakko

Cross Reference: Hakko A-1005 10  Units/Case

Desoldering Tip - Hakko

HK-0882 Desoldering Tip - Hakko

Cross Reference: Hakko A-1006 10  Units/Case

Desoldering Tip - Hakko

HK-0883 Desoldering Tip - Hakko

Cross Reference: Hakko A-1007 10  Units/Case

Desoldering Tip - Hakko
