Soldering Tips - Hakko Compatible

Request A Sample
Sku Number Name Size Units
Per Case
Price
Per Case
Case
Qty

HS-0530 SMD flow tip 3.3mm 10 $84.70
HS-0531 SMD flow tip 3.4mm 10 $87.50
HS-0925 Angled SMD 1.6mm 10 $69.40
HS-0927 Knife 6.3mm 10 $89.30
HS-1665 Screwdriver 5.2mm 10 $82.60
HS-2751 Screwdriver 1.6mm 10 $57.20
HS-2752 Screwdriver 2.4mm 10 $57.30
HS-2753 Screwdriver 3.2mm 10 $57.20
HS-2796 Screwdriver 1.2mm 10 $57.20
HS-2863 Screwdriver 0.8mm 10 $57.20
HS-4785 Point, rounded 1.0mm x 6.4mm tin length 10 $57.20
HS-4786 Point, rounded 0.8mm 10 $64.60
HS-4787 Point, micro rounded 0.4mm 10 $64.60
HS-4791 Angled SMD 0.4mm 10 $94.90
HS-5701 Bevel, micro 1.2mm 10 $57.20
HS-5702 Bevel, micro 2.0mm 10 $57.20
HS-5703 Bevel 3.0mm 10 $57.20
HS-5875 Bevel 4.0mm 10 $57.20
HS-8157 Angled SMD 0.4mm 10 $63.10
Packaging Order minimum case quantity only. Extra shipping fees may apply.

Soldering tips for Hakko FX-888, FX-888E, 926, 928 and other older stations, and Hakko FX-8801, FX-8802, FX-8803, 900M and other older irons. See cross references or data sheets for tip-to-tip referencing.

Plato is one of the largest manufacturers of soldering tips in the world, producing tips to fit all of the most popular soldering stations. The long life and fast heat recovery of Plato soldering tips increases user effectiveness and decreases production times.

Features & Benefits

  • Fast heat recovery increases soldering speed
  • Longer tip life reduces soldering cost by decreasing tip change overs

Product Dimensions

HS-0530 SMD flow tip

Cross Reference: Hakko SMD Flow Tip 10  Units/Case

SMD flow tip

HS-0531 SMD flow tip

Cross Reference: N/A 10  Units/Case

SMD flow tip

HS-0925 Angled SMD

Cross Reference: Hakko 900M-T-H 10  Units/Case

Angled SMD

HS-0927 Knife

Cross Reference: Hakko 900M-T-K, Hakko T18-K 10  Units/Case

Knife

HS-1665 Screwdriver

Cross Reference: Hakko 900M-T-S3, Hakko T18-S3 10  Units/Case

Screwdriver

HS-2751 Screwdriver

Cross Reference: Hakko 900M-T-1.6D, Hakko T18-D16 10  Units/Case

Screwdriver

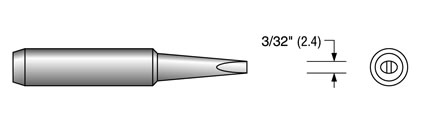

HS-2752 Screwdriver

Cross Reference: N/A 10  Units/Case

Screwdriver

HS-2753 Screwdriver

Cross Reference: Hakko 900M-T-3.2D, Hakko T18-D32 10  Units/Case

Screwdriver

HS-2796 Screwdriver

Cross Reference: Hakko 900M-T-1.2D, Hakko T18-D12 10  Units/Case

Screwdriver

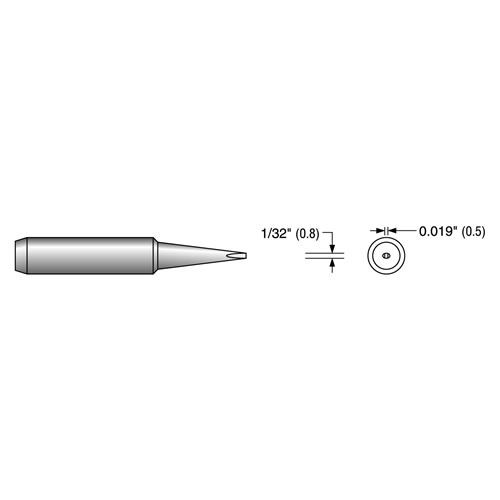

HS-2863 Screwdriver

Cross Reference: Hakko 900M-T-0.8D, Hakko T18-D08 10  Units/Case

Screwdriver

HS-4785 Point, rounded

Cross Reference: Hakko 900M-T-B, Hakko T18-B 10  Units/Case

Point, rounded

HS-4786 Point, rounded

Cross Reference: Hakko 900M-T-LB, Hakko T18-BL 10  Units/Case

Point, rounded

HS-4787 Point, micro rounded

Cross Reference: Hakko 900M-T-I, Hakko T18-I 10  Units/Case

Point, micro rounded

HS-4791 Angled SMD

Cross Reference: Hakko 900M-T-0.2RB, Hakko T18-BR02 10  Units/Case

Angled SMD

HS-5701 Bevel, micro

Cross Reference: Hakko 900M-T-1C, Hakko T18-C1 10  Units/Case

Bevel, micro

HS-5702 Bevel, micro

Cross Reference: Hakko 900M-T-2C, Hakko T18-C2 10  Units/Case

Bevel, micro

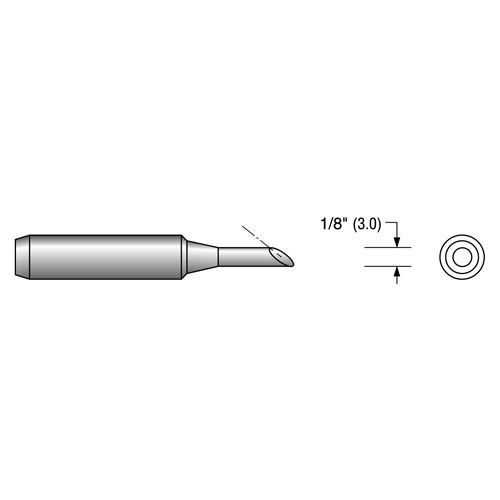

HS-5703 Bevel

Cross Reference: Hakko 900M-T-3C, Hakko T18-C3 10  Units/Case

Bevel

HS-5875 Bevel

Cross Reference: Hakko 900M-T-4C, Hakko T18-C4 10  Units/Case

Bevel

HS-8157 Angled SMD

Cross Reference: Hakko 900M-T-S5, Hakko T18-S5 10 Units/Case

Angled SMD
