Soldering Tips - Weller Compatible

Request A Sample
Sku Number Name Size Units
Per Case
Per Case
EW-0574 SMD flow tip 5.0mm 10 $64.30
EW-101 Screwdriver, micro 1.6mm 10 $38.70
EW-103 Screwdriver 4.8mm 10 $38.70
EW-105 Screwdriver 5.6mm 10 $55.50
EW-301 Screwdriver 0.8mm 10 $38.70
EW-303 Screwdriver 1.6mm 10 $38.70
EW-304 Screwdriver, long 1.2mm 10 $38.70
EW-305 Screwdriver 2.4mm 10 $38.70
EW-306 Screwdriver, long 2.0mm 10 $38.70
EW-307 Screwdriver 3.2mm 10 $38.70
EW-401 Conical 0.6mm 10 $38.70
EW-402 Conical, long 0.4mm 10 $38.70
EW-403 Conical 0.8mm 10 $38.70
EW-404 Conical, long 0.8mm 10 $62.60
EW-4796 Point 0.3mm 10 $42.20
EW-511 Bevel 0.8mm 10 $38.70
EW-513 Bevel 1.6mm 10 $38.70
EW-515 Bevel 2.4mm 10 $38.70
EW-517 Bevel 3.2mm 10 $38.70
Order from an Authorized Distributor
Packaging Order minimum case quantity only. Extra shipping fees may apply.
Replacement soldering tips for Weller WES50, WES51, WD1 and WD2, and Weller hand pieces EC1201A, EC1204A, PES50, PES51 and WCC101. Comparable to Weller's ET series of tips. See cross references or data sheets for tip-to-tip referencing.

Plato is one of the largest manufacturers of soldering tips in the world, producing tips to fit all of the most popular soldering stations. The long life and fast heat recovery of Plato soldering tips increases user effectiveness and decreases production times.

Features & Benefits

  • Fast heat recovery increases soldering speed
  • Longer tip life reduces soldering cost by decreasing tip change overs

Product Dimensions

EW-0574 SMD flow tip

Cross Reference: Weller ETGW 10  Units/Case

SMD flow tip

EW-101 Screwdriver, micro

Cross Reference: Weller ETR 10  Units/Case

Screwdriver, micro

EW-103 Screwdriver

Cross Reference: Weller ETD 10  Units/Case

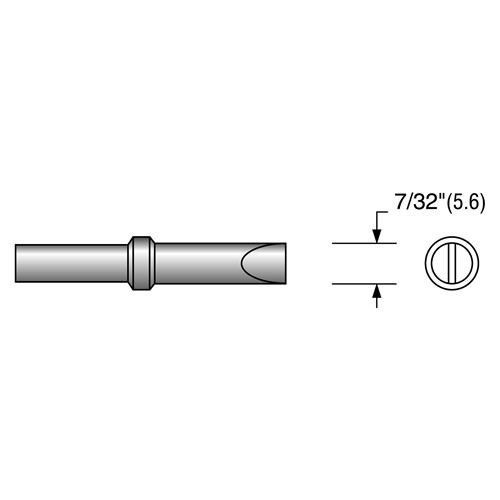

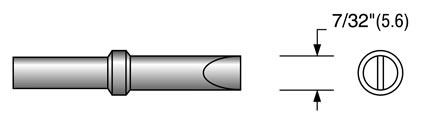

EW-105 Screwdriver

Cross Reference: Weller ETE 10  Units/Case


EW-301 Screwdriver

Cross Reference: Weller ETH 10  Units/Case


EW-303 Screwdriver

Cross Reference: Weller ETA 10  Units/Case


EW-304 Screwdriver, long

Cross Reference: Weller ETK 10  Units/Case

Screwdriver, long

EW-305 Screwdriver

Cross Reference: Weller ETB 10  Units/Case


EW-306 Screwdriver, long

Cross Reference: Weller ETL 10  Units/Case

Screwdriver, long

EW-307 Screwdriver

Cross Reference: Weller ETC 10  Units/Case


EW-401 Conical

Cross Reference: Weller ETT 10  Units/Case


EW-402 Conical, long

Cross Reference: Weller ETS 10  Units/Case

Conical, long

EW-403 Conical

Cross Reference: Weller ETP 10  Units/Case


EW-404 Conical, long

Cross Reference: Weller ETO 10  Units/Case

Conical, long

EW-4796 Point

Cross Reference: N/A 10  Units/Case


EW-511 Bevel

Cross Reference: Weller ETV 10  Units/Case


EW-513 Bevel

Cross Reference: Weller ETAA 10  Units/Case


EW-515 Bevel

Cross Reference: Weller ETBB 10  Units/Case


EW-517 Bevel

Cross Reference: N/A 10  Units/Case
